Circular Loom Controller LCM for Electronic Loom (Mesh Control, Logic Functions & Monitoring)

Electronic Mesh Control for Frequent Fabric Variations and Accurate Quality Requirements. Easy to Maintain Fabric Quality.

For Many Different Loom Models

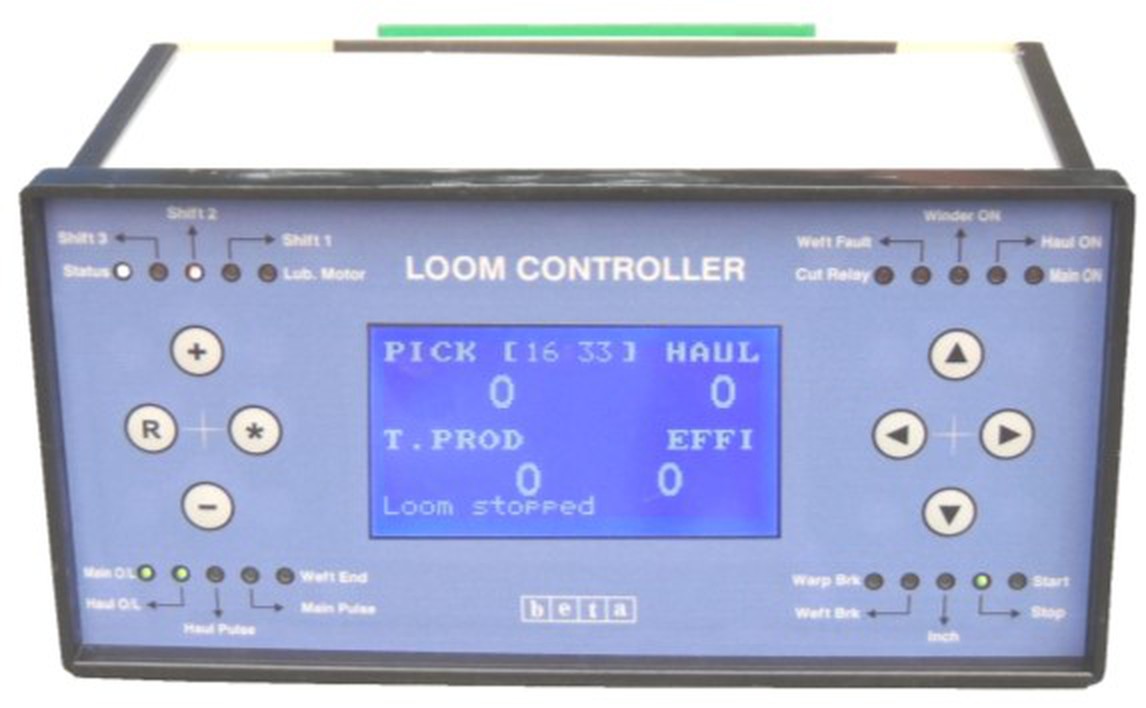

Front view (HMI) of LCM boxBuilt in PLC

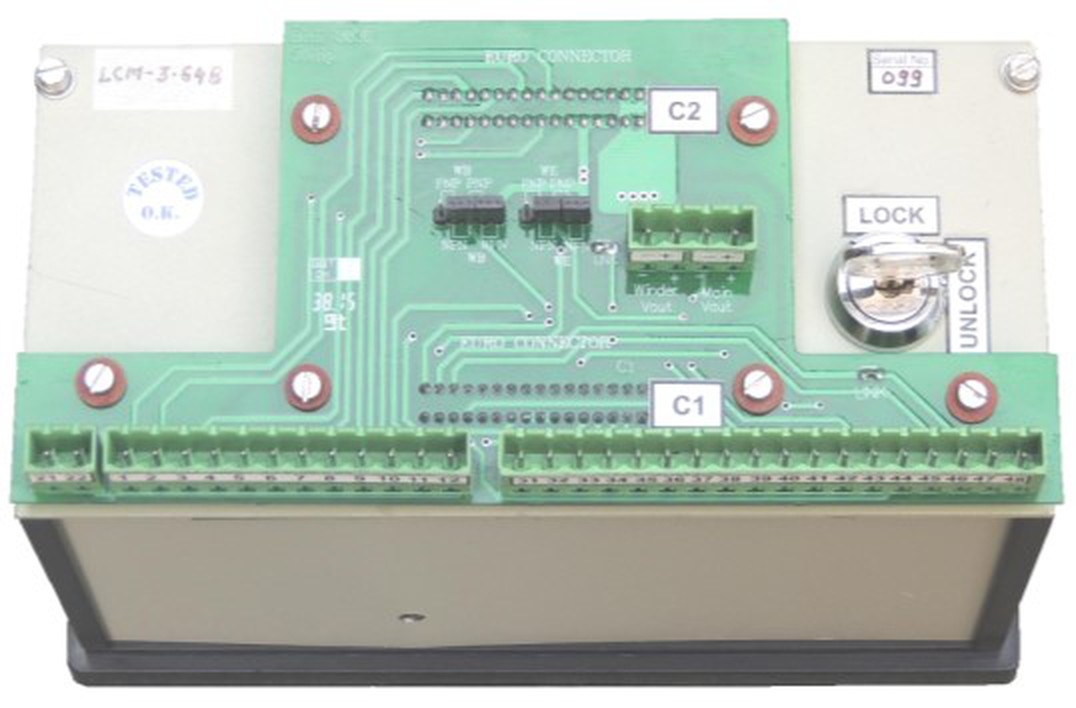

Back view of LCM boxEasy Direct Replacement

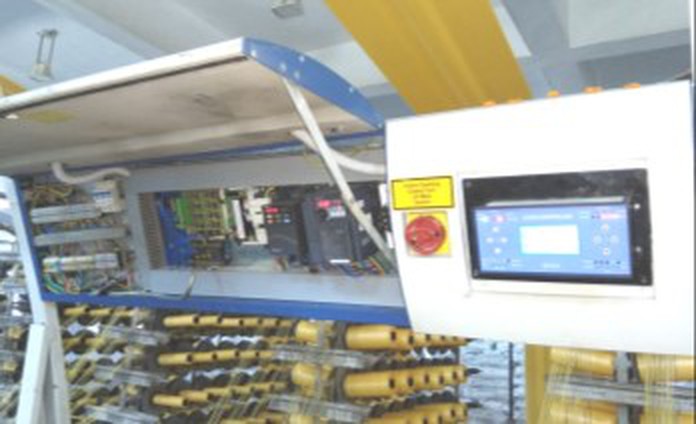

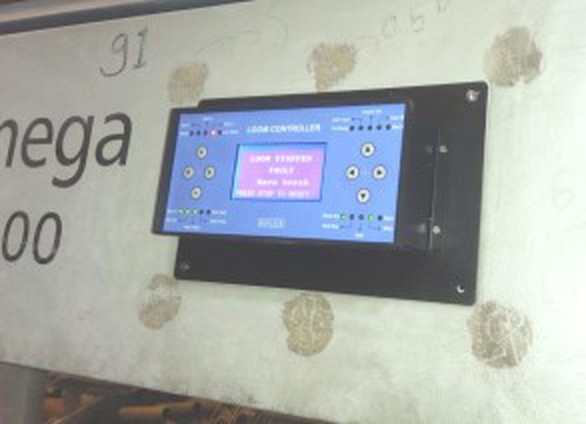

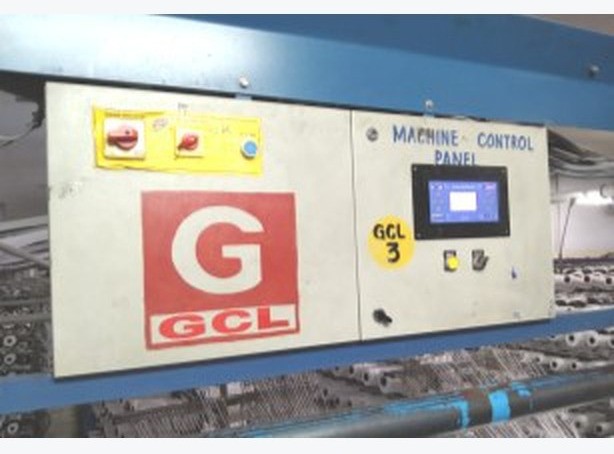

Beta LCM on Different Make LCM Loom Controller

Beta LCM on Different Make LCM Loom Controller
Beta LCM on Different Make LCM Loom Controller
Beta LCM on Different Make LCM Loom Controller

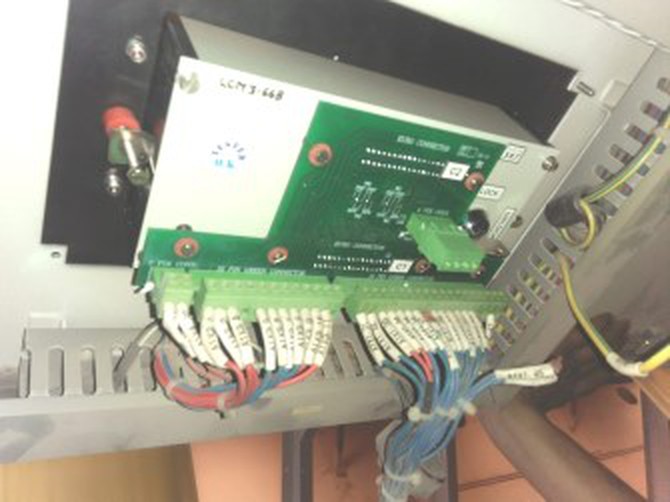

Direct Replacement to other Loom Controllers
Easy to Maintain Fabric Quality
Easy to Maintain Fabric Quality
  • Electronic Mesh Control: No need to change gear for changing Weft Density
  • PID control for smooth Fabric
  • All Interlocking PLC Functions like Start, Stop, Inch, Various faults
  • Easy installation, Detailed Documentation
  • Loom Data Recording: Production, Counting No. of Breakages and Delays, Time Efficiency etc.
  • Two speed Operation for Inch and Run
  • Special Functions: Regular interval cramming, Auto winder OFF / ON, Order setting, Roll length setting, Lubrication Timer
  • Main Motor speed setting
  • Input / Output LEDs for easy diagnostic
  • Sensor input PNP / NPN selection
  • Test Menu for very easy setting and diagnostic
  • Indication of all faults separately
  • Direct Connectivity of Weft End & Weft Break Sensor
  • Service support for Trouble Shooting

Components

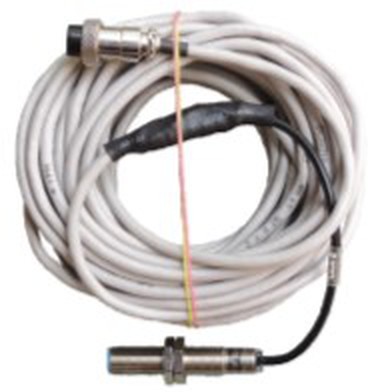

Proxy: 8mm/12mm with shielded cable for Haul pulse & Main pulse
Warp PCB (B,L)

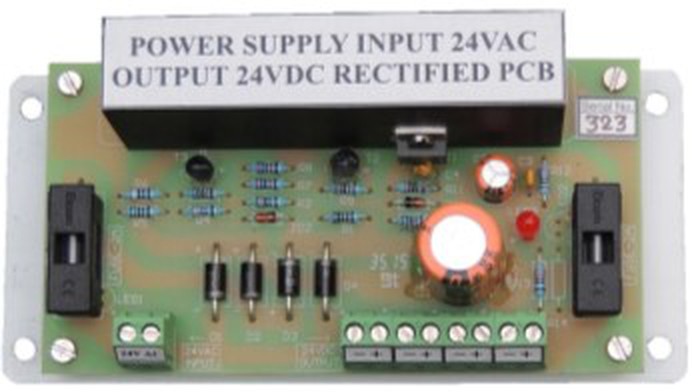

24VAC to 24VDC Power Supply or Use 24VDC SMPS

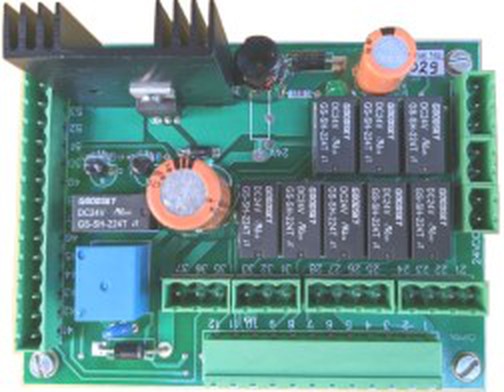

Warp PCB (S)

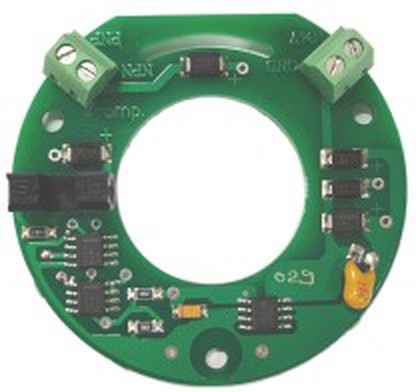

Round Encoder (S)

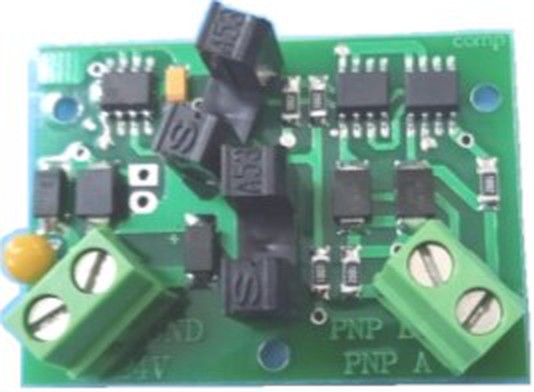

Rectangular Encoder (S)
